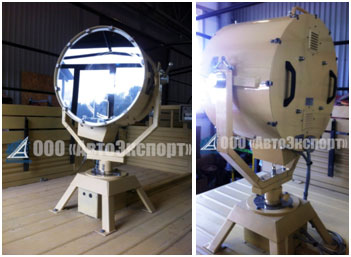

ППО-750 searchlights are designed for detecting moving and stationary targets in the dark at a minimum distance of 1,500 m.

It can be mounted as a stationary device or onto any vehicle. It is powered by an independent diesel generator or by an external power source.

Inside the searchlight is an HMI W/SE XS single-electrode mercury lamp with a very high luminous efficiency of up to 100 lm/W and a color temperature of about 6,000K (daylight). The powder-painted aluminum body of the searchlight ensures high corrosion resistance, efficiency cooling, and protection from moisture and dust (IP65). The body contains: a lamp, a lamp control node, cooling fans, and a reflector.

ППО-750 SEARCHLIGHT SPECIFICATIONS: BASIC CONFIGURATION
Voltage, V	220
Frequency, Hz	50
Max. power consumption, W	3000
Color temperature, K	6000
Operating temperature range, ºC	-45/+50
Electrical protection class	I
Max. weight (excluding the generator), kg	75
Min. ray range, m	4000
Dimensions with the frame, LxWxH, mm	740х1070х1010
ADDITIONAL OPTIONS
Binocular combined with the unit

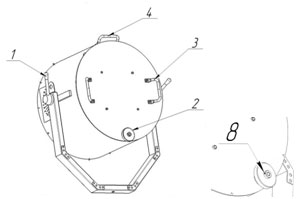

Рис. 1 Fig. 1 Front view of the searchlight 1 — Horizontal position lock; 5 Scale; 6 Pointer; 7 Glass clamps.	Fig. 2 Rear view of the searchlight 1 — Horizontal position lock; 2 Focal length adjustment handle; 3 Vertical rotation handle; 4 Horizontal rotation handle; 8 Focus wheel locking screw.

*Technical specifications are presented on this page for reference only, as the parameters and other operational indicators depend on the vehicle configuration of choice.
